Machining, Drilling, and Beveling

Top Quality Beveling, Drilling, and Machining Services

Each year, our customers trust us to drill millions of inches in hole depth to their exact specifications. Our high-capacity machining centers make the difference. Like all of our modern equipment, they are expertly operated by Port City Metal Services employees who understand your need for quality, on-time results.

Technically Advanced Machining, Drilling, and Beveling Equipment

Port City Metal Services' CNC VERTICAL MACHINING CENTERS feature work envelopes ranging from 20” x 40” to 90” x 207”. All units are equipped with automatic tool changers, high pressure, thru-the-spindle coolant, Renishaw probes, and many have dual pallets for maximum throughput. Our CNC HORIZONTAL, MULTI-PALLET MACHINING CENTER has automatic tool changers, high pressure, thru-the-spindle coolant, and Renishaw probes. We also have MILLING BEVELING MACHINES with up to 200” long capacity.

MODELSIZETOOLSHORSEPOWER

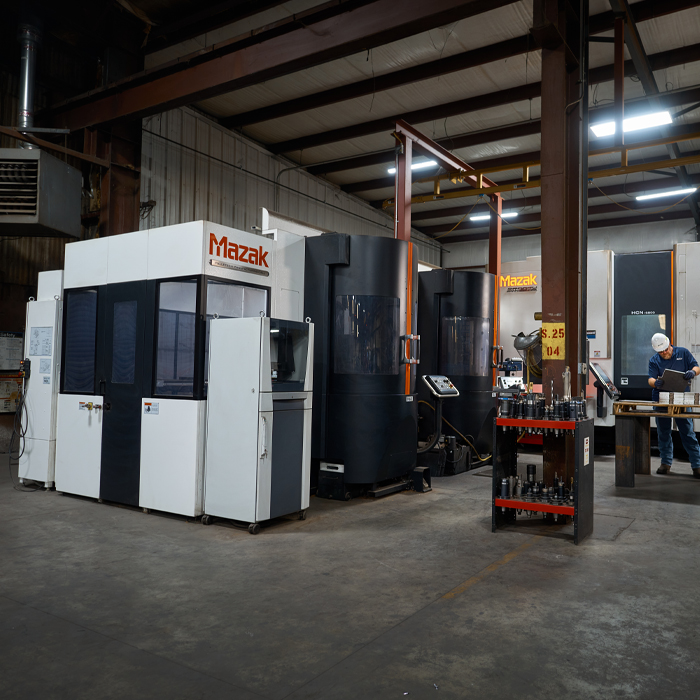

2019 Mazak Palletech HCN-680038" x 38" 10 pallets120 tools50 HP @ 8000 RPM
2019 Mazak VTC 805G23.5" x 117" single pallet40 tools40 HP @ 6000 RPM
2014 Quickmill Annihilator91" x 207" single pallet20 tools35 HP @ 6000 RPM

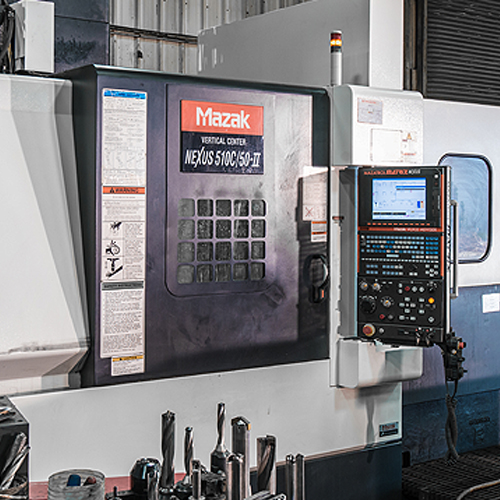

2014 Mazak 510C / 50-II18" x 39" dual pallet24 tools30 HP @ 6000 RPM
2013 Mazak 510C / 50-II18" x 39" dual pallet24 tools30 HP @ 6000 RPM

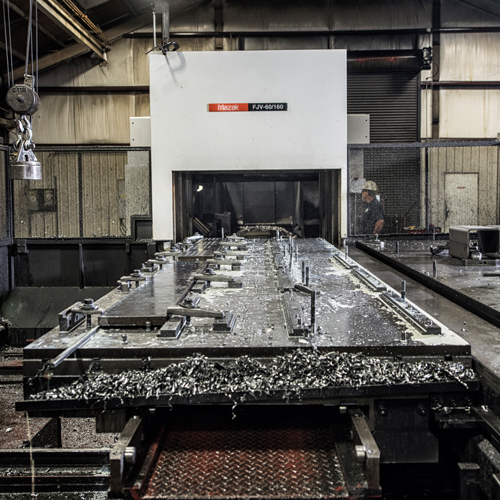

2011 Mazak FJV 60/16046" x 155" dual pallet40 tools 35 HP @ 6000 RPM
2009 Mazak FJV 60/16046" X 155" dual pallet40 tools35 HP @ 6000 RPM
2006 Mazak FJV 50/8036" x 76" dual pallet40 tools35 HP @ 6000 RPM
2005 Okuma 650 VB24" x 57" single pallet32 tools30 HP @ 6000 RPM
2005 Rockford Bevel Machine17' table length1 tool30 HP
2004 Mazak FJV 50/80 36" x 76" dual pallet40 tools35 HP @ 6000 RPM
